đź’ˇ CCTV Storage Planning: A Technical Approach to Surveillance Reliability
At ProAct Technology (www.prosys-eg.com), we believe that effective surveillance in Egypt goes beyond just choosing the right cameras—it’s about ensuring reliable, uninterrupted recording.
wwahab
5/15/20261 min read
CCTV storage capacity is not a random selection. It must be meticulously calculated based on key technical factors:
đź“ą Number of cameras
🎥 Resolution & Frame Rate (FPS)
đź’ľ Bitrate (H.265/H.264)
⏱️ Recording Mode (Continuous vs. Motion)
đź“… Required Retention Period

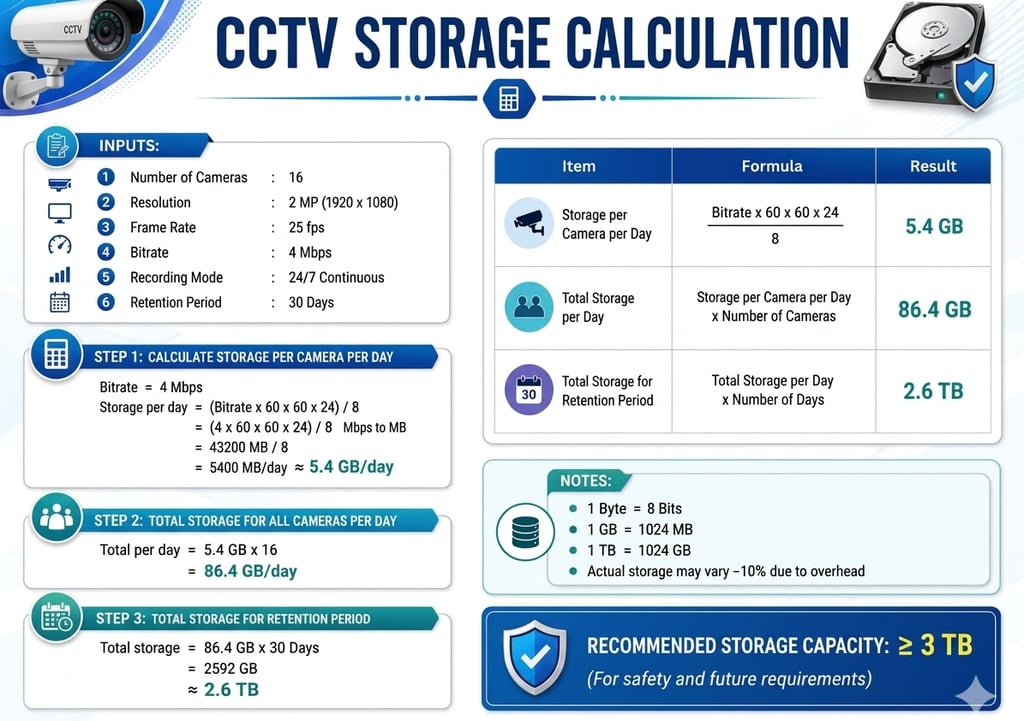

Example from our Project Engineering team:
In this example, 16 cameras recording continuously for 30 days require approximately 2.6 TB of storage. Therefore, a minimum recommended storage capacity of 3 TB is selected to allow for system overhead and future expansion.
Accurate storage calculation helps ensure reliable recording, proper retention, and smooth system operation without unexpected storage shortages.
At Proact, your success is our purpose
