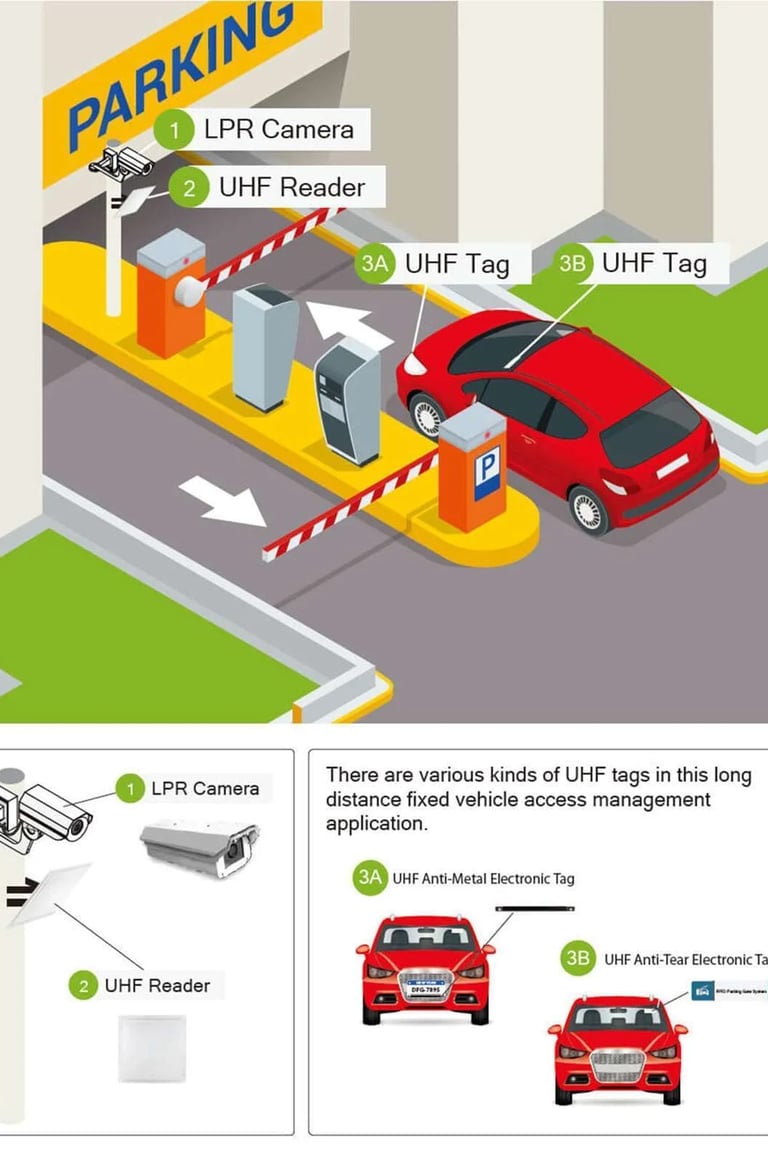

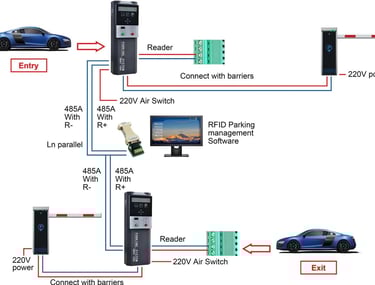

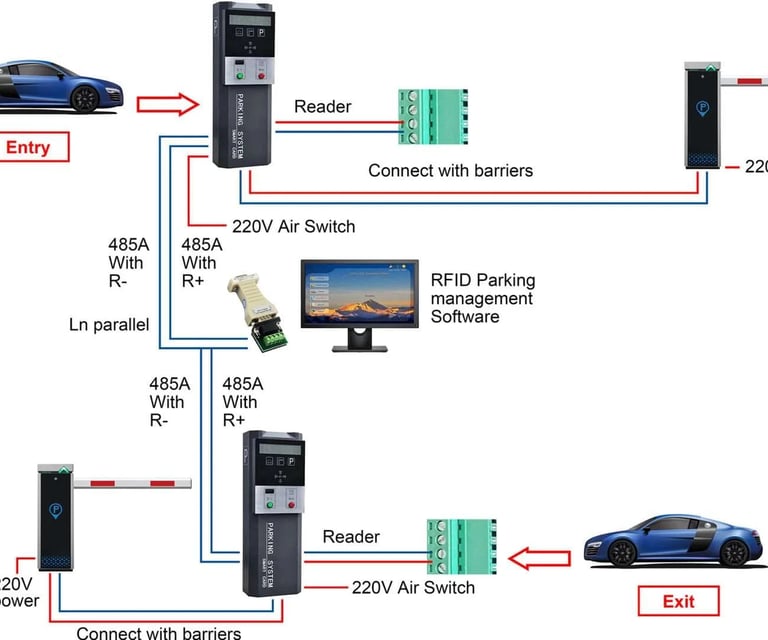

System Architecture

Parking management solutions are comprehensive systems of hardware and software designed to automate vehicle access, monitor space availability, and manage revenue for parking facilities. By replacing manual ticketing with digital tools, these systems optimize space usage, reduce traffic congestion, and enhance the overall experience for both operators and drivers.

Core Components

Modern solutions typically integrate several key technologies to function effectively:

Access Control: Uses automated barriers, gates, and License Plate Recognition (LPR) cameras to manage vehicle entry and exit without manual intervention.

• Monitoring & Sensors: Ground-based or overhead sensors track real-time occupancy, feeding data to digital signage or apps to guide drivers to open spots.

• Payment Systems: Facilitates cashless transactions through mobile apps, kiosks, or online platforms, supporting various methods like credit cards and mobile wallets.

• Management Software: Acts as the "brain," providing a centralized dashboard for administrators to monitor activity, manage permits, and generate data-driven reports.

Key Benefits

• Operational Efficiency: Automation reduces the need for on-site staff and minimizes human error in ticketing and enforcement.

• Increased Revenue: Tools like dynamic pricing (adjusting rates based on demand) and automated fee collection help maximize profitability.

• Improved User Experience: Drivers save time and fuel by finding available spaces quickly through real-time updates and pre-booking features.

• Enhanced Security: Integrated surveillance and ANPR technology ensure only authorized vehicles enter, providing a full audit trail of all activity.

• Sustainability: By reducing the time vehicles spend idling while searching for spots, these systems lower carbon emissions and support "Smart City" initiatives.

Common Applications

• Corporate Offices: Managing employee permits and visitor access fairly.

• Hospitals & Airports: Handling high-volume traffic with automated gated systems.

• Retail & Malls: Providing seamless "scan and pay" options for public customers.

• Residential Complexes: Securing gated access for residents and their guests

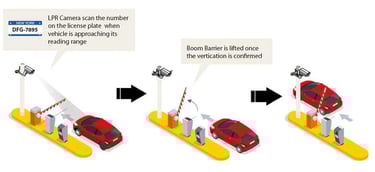

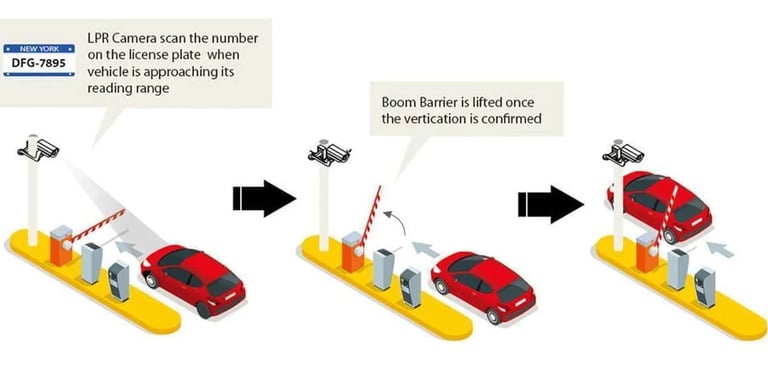

Automatic Vehicle Recognition (With UHF Reader and UHF Tag)

LPR technology is an application of computer video image recognition technology in license plate identification area. Its operation starts when the vehicle is located at the entrance of the parking lot, the LPR Camera will scan on the license plate character, and its recognition technology will identify the license plate number, color and other information. Vehicle type, license plate recognition integrated machine, intelligent recognition management software composition, multi-dimensional detection of vehicles using high-definition video mode, extraction of vehicle feature information, when the vehicle drives into the detection range, the front camera detection of the front part of the vehicle, extraction of the vehicle’s high-definition picture, license plate number, body color, vehicle height / width and other feature information. If the number on the license plate is valid, the car park barrier will lift for access, otherwise, no access will be allowed.

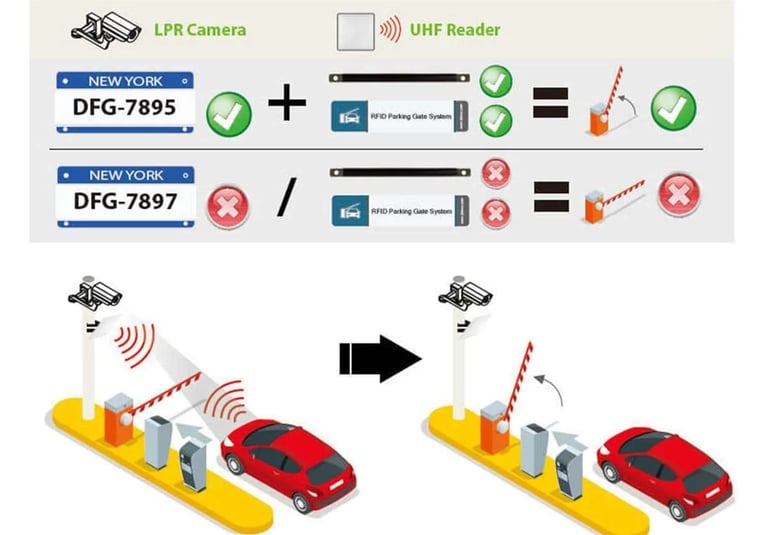

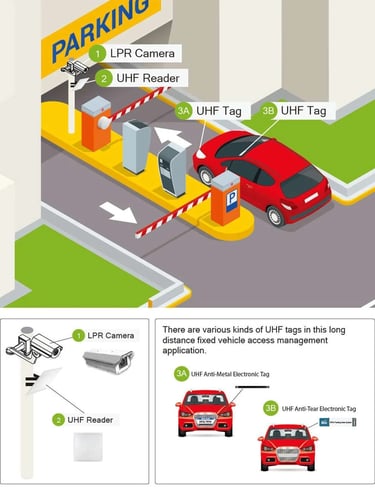

Dual Number Plate Authentication (UHF and LPR Based Two Level Authentication System for Vehicles)

Dual number plate authentication is a Multi-factor authentication to use of several authentication techniques together. Once the vehicle is located at the entrance of the carpark lot, both of the UHF reader and LPR Camera will start to recognise the UHF Tag and the number plate on the vehicle. If the verification of the number plate and the UHF tag is valid, the car park barrier will lift for access, otherwise no access will be allowed.

Card Parking system (Card Dispenser+ Card Reader) For Temporary Cars

1.Visitors push the button to get a card from the entry card dispenser machine then the barrier gate will open automatically. 2.When the car pass through, the barrier gate will close automatically. 3. When the visitors leave, they need pay the parking fee at management center. Or pay at parking payment machine.(Read the cards then calculate the parking fee). 4. After payment, the center staff open barrier gate for visitors to leave. (If pay at payment machine, visitors just put the card back to the exit machine with card receiver, then the barrier gate will open automatically. ) 5.Barrier gate close after the car pass automatically. For VIP Cars : They prepaid and got the registered cards then only need swipe the cards on the entry & exit machine and the barrier gate will open automatically. Ticket System( Ticket Dispenser+Card Reader) For Temporary Cars : 1.Visitors push the button to get a ticket from the entry ticket dispenser machine then the barrier gate will open automatically. 2.When the car pass through, the barrier gate will close automatically. 3. When the visitors leave, they need pay the parking fee at management center. Or pay at parking payment machine.(Scan the tickets then calculate the parking fee). 4. After payment, the center staff open barrier gate for visitors to leave. (If pay at payment machine, visitors just scan the ticket on the exit machine with ticket scanner, then the barrier gate will open automatically. ) 5.Barrier gate close after the car pass automatically. For VIP Cars : They prepaid and got the registered cards then only need swipe the cards on the entry & exit machine and the barrier gate will open automatically.

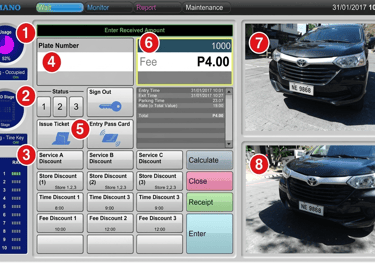

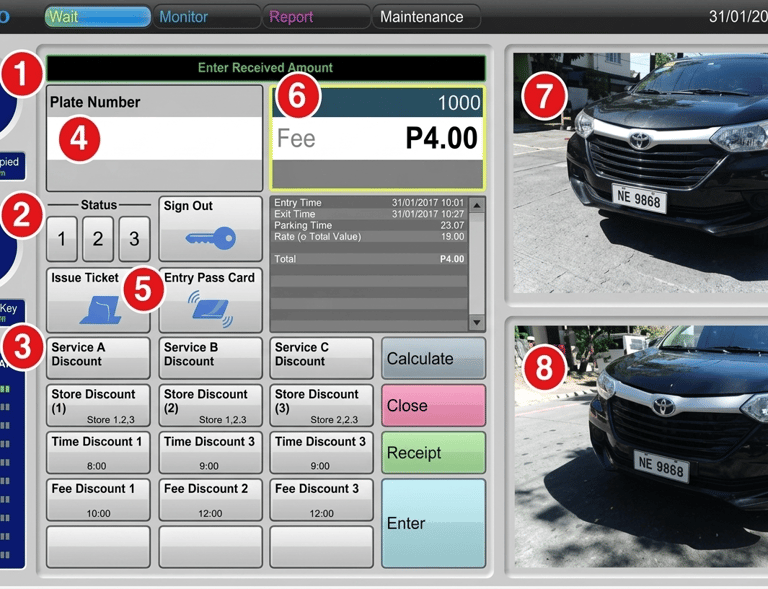

Management Software

The software can be applied to different systems, such as: cred it card system, paper ticket parking system, Bluetooth system, UHF system.

Software function introduction:

Can log in to see the operator handover.
Can set the number of days and paths for automatically saving.
pictures and data and automatically print tickets.
Payment rules setting (supports 4 car types).
Files of permissions, operator and parking lot management.
Card management(Card detection, issuance, extension, recharge, loss reporting, recovery, recycle, replacement, file processing, departure).
Real time monitoring(Vehicle presence, in and out conditions and charges).
View vehicle presence, entry and exit management information records.
View of operator charge report, entry& exit vehicle report and parking fee report.

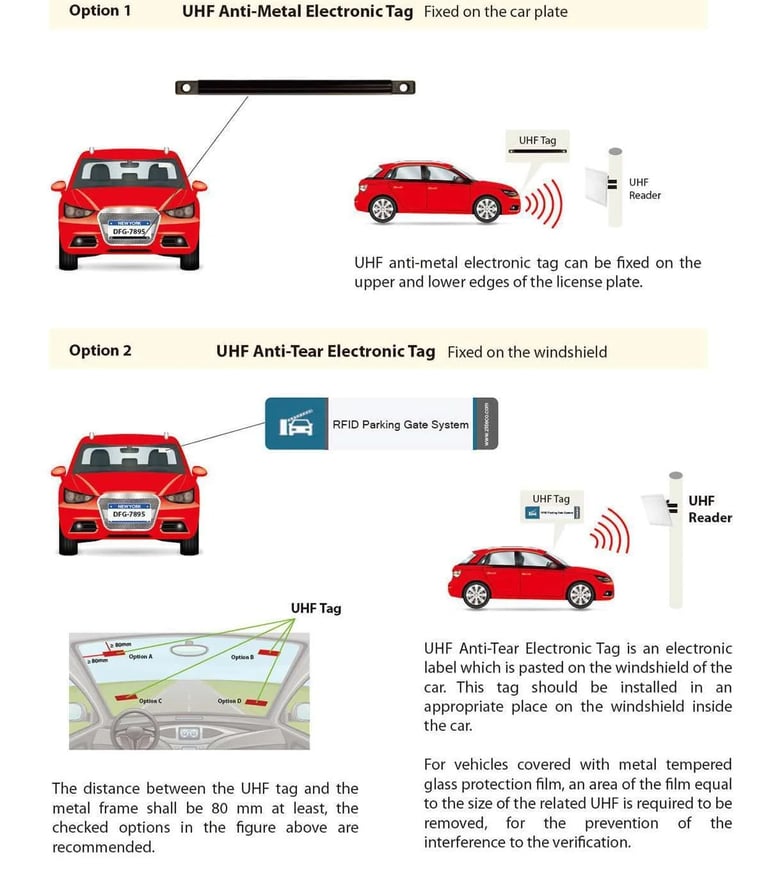

UHF Tag

Our architecture services prioritize function and form to create spaces that stand the test of time.

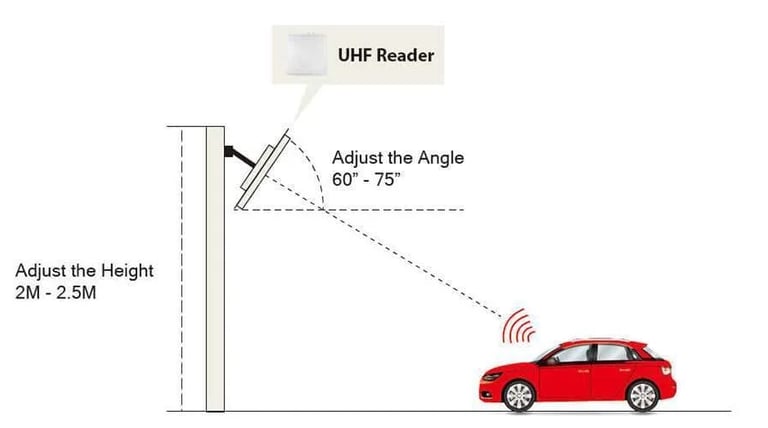

UHF Reader

The UHF RFID reader is an RFID long-range proximity card reader which can simultaneously read multiple passive UHF tags at ranges up to 12m. The reader is waterproof and is suitable for use in a wide range of RFID applications, such as transport management, vehicle management, car parking, production process control, and access control.
