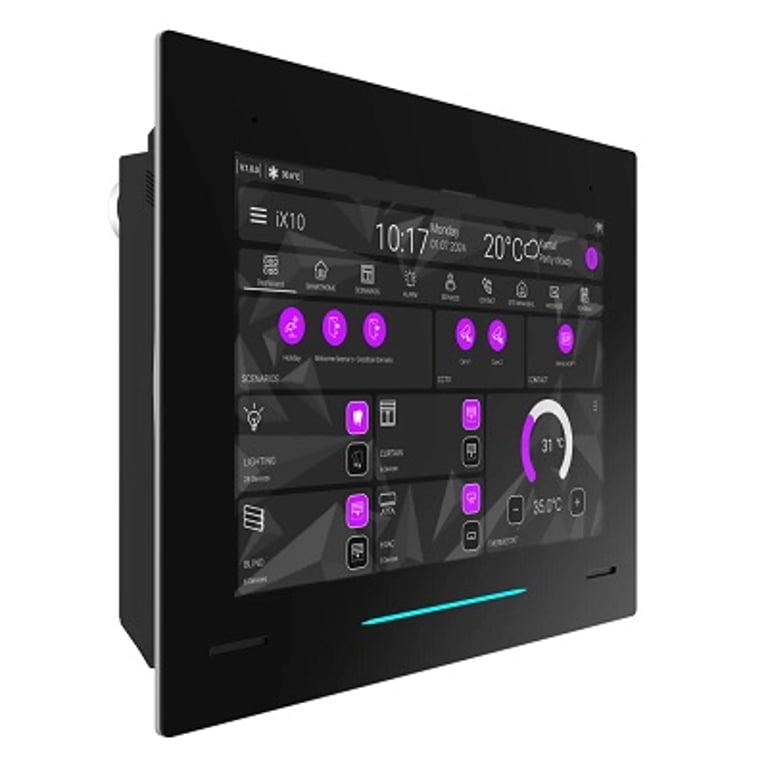

iX10 - 10.1" KNX Touch Panel

iX10 is designed as a central hub for all your automation systems. It can control a range of systems, including switches, sensors, lighting, heating, cameras, and alarms. You can control the system from your mobile device by downloading the Interra Pro app from the App Store or Google Play. For the installation and solutions of Interra touch panels, download the Interra Configurator software from the web:

• Automation Control: Control EIO (Ethernet-controlled IO Module) and KNX automation systems with the Interra Panel.

• Scheduler Feature: Use the panel's scheduler to plan operations daily, monthly, or yearly.

• Security Control: Manage security systems and monitor cameras via the panel and mobile apps.

• Logical Operations: Perform various operations with the Interra Trade Panel.

• Instant Notifications: Receive instant notifications on your mobile devices through Google and Apple Cloud.

• IoT Devices: Gain control over all IoT-compatible devices with the Interra Control Panel.

• Voice Control: Control your home using voice commands with assistants like "Hey Interra Voice Assistant.

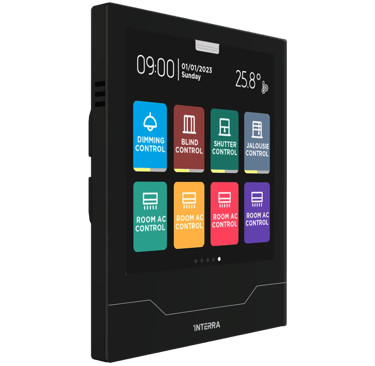

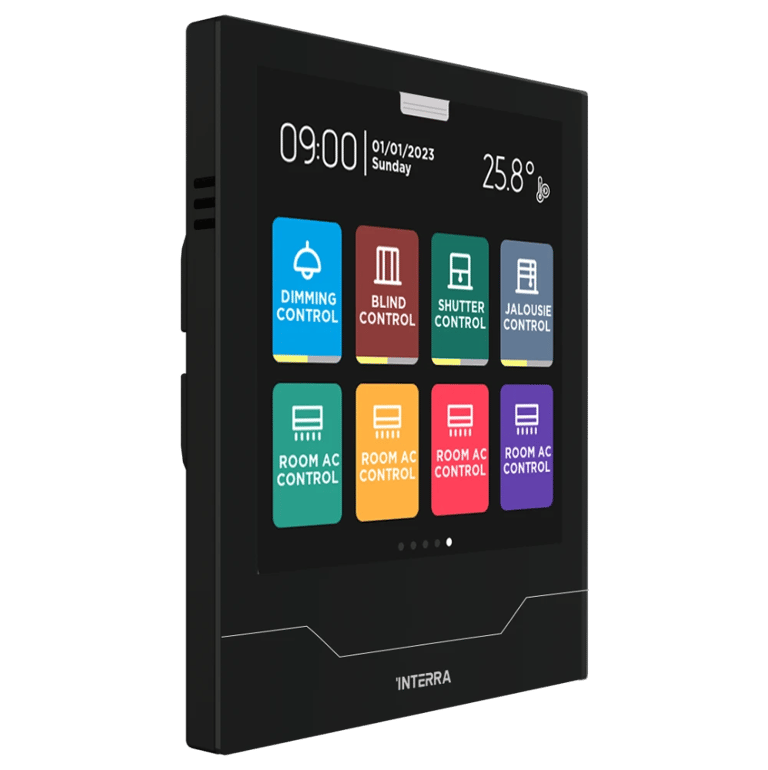

Interra iX4 - 4" KNX Touch Panel / Black

The new 4” KNX Touch Panel is a next-generation customizable mini smart home panel that provides great flexibility in room control and architectural design, offering efficient solutions for residential or commercial applications. The user-friendly and customizable interface (1x2, 1x4, 2x4) simplifies the control of smart buildings and removes complexity from your life. All pages and colors can be customized according to your needs. The Interra iX4 manages all the functions necessary for building automation with special pages for each task, including music control, switching, dimming, adjustable white lighting, RGBW control, shutter/blinds and jalousie, thermostat control, air conditioning control, underfloor heating control, timer scenarios, energy and air quality monitoring.

It comes with five built-in sensors, including proximity, temperature, light intensity, and humidity, and has a special page showing these values along with the weekly weather forecast. Proximity detection offers extra energy savings in standby mode. One relay output (2A), two digital and two analog inputs save time with flexibility and easy installation.

• ETS Configuration (No External Configurator Required)

• Compatible with Standard Single Flush-Mount Box

• Software Update via USB

• Configurable Main Screen (1x2, 1x4, 2x4)

• All KNX-Based Controls

• Analog or Digital Clock as Screensaver

• Dry Contact Signal Output for DND Modules

• Temporary Screen Lock and Password Protection for Cleaning

• 16 Function Pages, 8 Different Functions for Each• 1 Device with 4 • • • Thermostats and 4 AC Control Possibilities

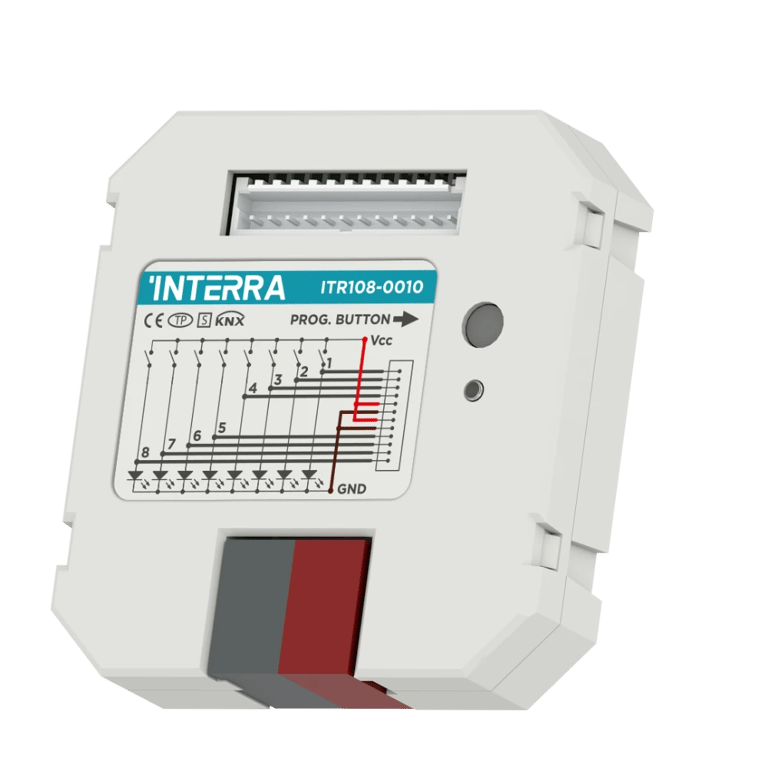

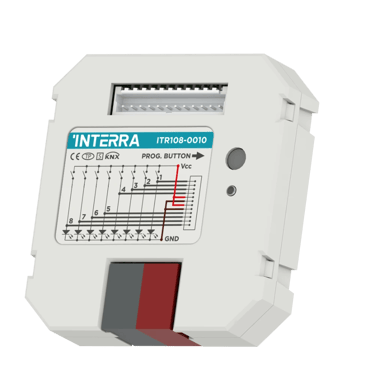

KNX Binary Interface - 8 Channel

DESCRIPTION
ITR10X-0010 Binary Interface device is used to interface the contacts to KNX bus substructure such as push buttons, switches etc. to make them communicating devices.

CONFIGURATION AND FEATURES
The complete configuration of the device is performed via ETS5 or higher. Depending on ETS configuration and settings, the product feature will be different. Available functions are:

Input Functions

• Switch Sensor

• Switch / Dimming Sensor

• Shutter Sensor

• Value / Forced Operation

• Control Scene

• LED Control

• RGB Colour Control

• RGBW Control

• Mode Selection

• Command Sequence

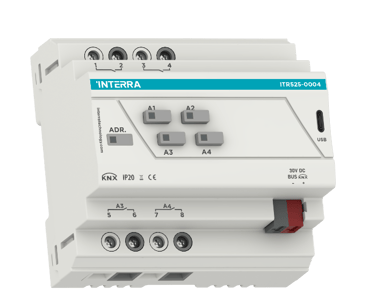

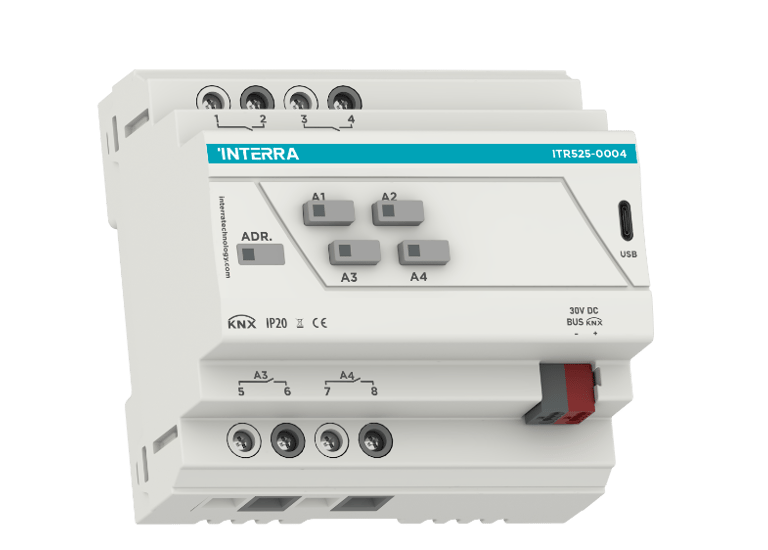

KNX Combo+ Switch Actuator - 4 Channel

The Combo+ Switch Actuator is a versatile device that allows a variety of configurations. The combo device is intended to cover every automation requirement in a smart building for safe and efficient operations. The communication of the devices via the KNX bus enables information exchanges with KNX sensors and integration with a building management system. The combo has been developed to provide the whole control in the residence and hotel sectors. The usage of these devices guarantees the efficient management and provision of rooms. The manual control of the outputs is possible through the push buttons on the device. It allows the control of the outputs when bus communication failures between devices occur. The combo+ actuator is supplied with power from the KNX and accordingly does not need any external power supply. The complete configuration of the device is performed via ETS. The type and number of the available objects Product Code ITR525-XXXX depend on the settings with ETS.

MAIN FUNCTIONAL CHARACTERISTICS:

• Lighting control can be made with every output of the combo switch actuator.

• Heating control can be made with every output of the combo switch actuator.

• Every output of the combo module can be configured as shutter/blind provided that 2 consecutive outputs are available.

• Shutter/blind 24 V configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.

• Fan Coil 2 pipes configuration can be with 4 outputs of the combo module. However, it is only available in the first four outputs of the (*) blocks.

• Fan Coil 4 pipes configuration can be with 5 outputs of the combo module. However, it is only available in the first five outputs of the (*) blocks.

• The functionalities for each output include among other things timing functions, logic gates, scenes, disabling function, forced, working hours counter, periodical monitoring and different configurations for feedback telegrams.

• Last situation memory against power failure.

• The Combo+ Switch Actuator contains a maximum of 600 group addresses and 600 assignments.
