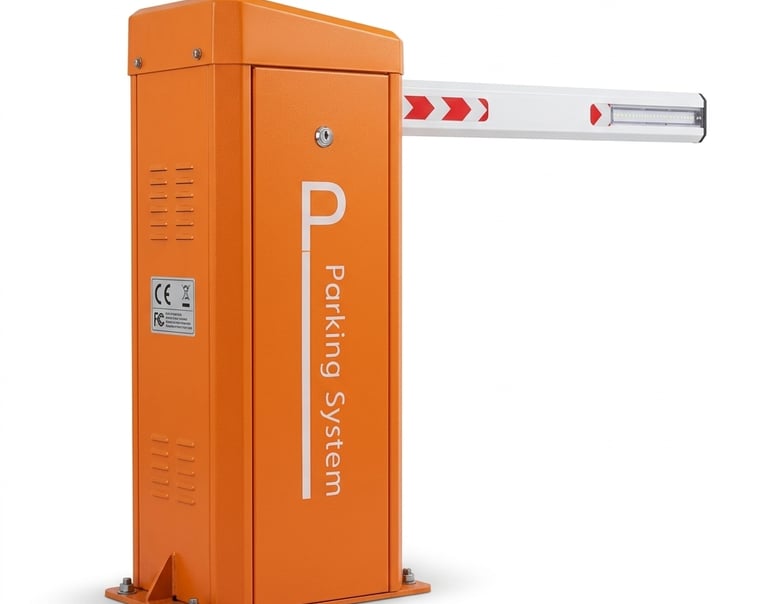

KS-DZ0025

Features:

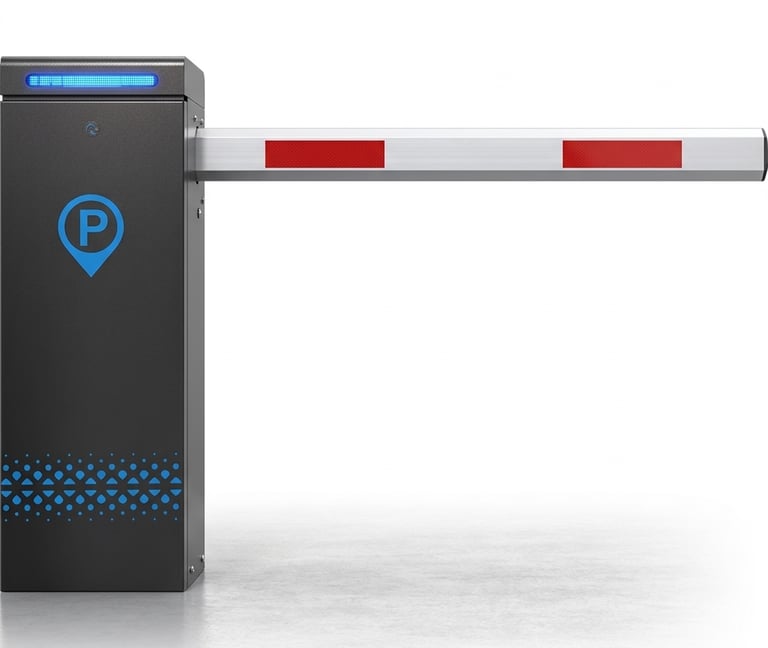

Boom Barrier gate is durable, accurate, flexible and safe. It assembles with aluminum alloy octagonal beam with the Max. Length of 6m, gate open/close time is 0.9s/1.5s/3s optional. Adopts 2nd generation DC brush-less mechanism, which merits for compact in structure, enhanced rigidity, and convenient for maintenance and operation. When the brake lever is in the horizontal or vertical state, the movement structure is completely self-locking, which can effectively protect the reducer from external impact. Compared with ordinary barrier gate mechanism, our failure rate can be reduced by about 20%. Anti-smashing function, rebound when encountering obstacles. Control Board in a Plastic box makes control board waterproof and dust-proof. All part is made by mold make the barrier gate accurate and stable. Safety- Loop detector: after vehicle passed the barrier will automatically close once the loop input was triggered.

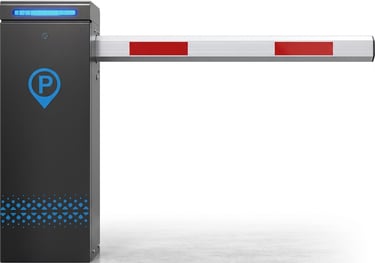

KS-DZ0024

Features:

Boom barrier gate provides a secure and convenient solution of stopping unauthorize vehicle or giving access to authorize vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc. Previous Next Features Karsun DZ series boom Barrier gate is durable, accurate, flexible and safe. It assembles with aluminum alloy octagonal beam with the Max. Length of 6m, gate open/close time is 0.9s/1.5s/3s optional. Adopts 2nd generation DC brush-less mechanism, which merits for compact in structure, enhanced rigidity, and convenient for maintenance and operation. When the brake lever is in the horizontal or vertical state, the movement structure is completely self-locking, which can effectively protect the reducer from external impact. Compared with ordinary barrier gate mechanism, our failure rate can be reduced by about 20%. Anti-smashing function, rebound when encountering obstacles.Control Board in a Plastic box makes control board waterproof and dust-proof.All part is made by mold make the barrier gate accurate and stable.Safety- Loop detector: after vehicle passed the barrier will automatically close once the loop input was triggered.

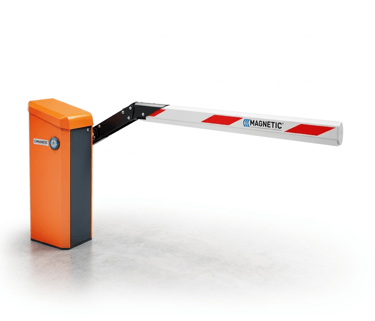

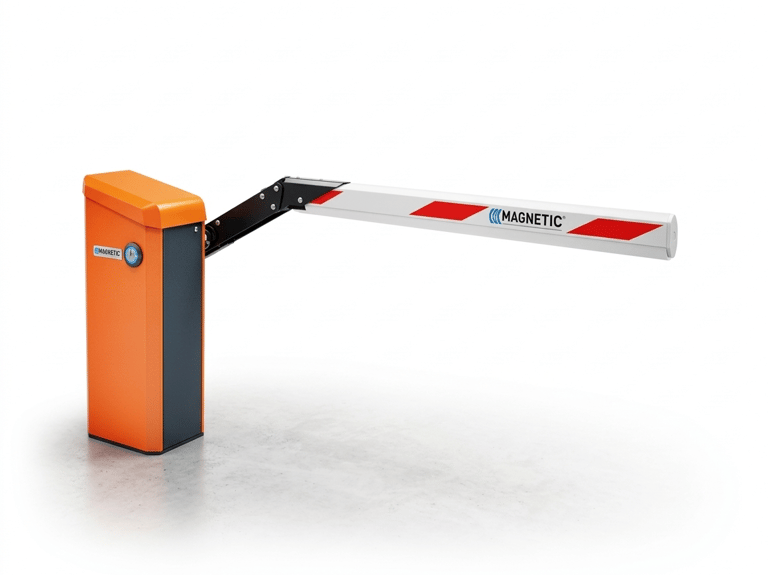

Magnetic ACCESS

Low operating costs
Barriers from Magnetic operate particularly cost-effectively thanks to their high levels of energy-efficiency, extremely long service lives, and simple maintenance – an investment that definitely pays!

Innovative drive technology
The MHTM™ drive unit operates without maintenance, energy-efficiently and quietly. Its high torque guarantees optimum operation even under extreme weather conditions.

Easily accessible components
Two simple hand movements – the control system and drive unit are easily reached by removing the hood and front cover. This is more user-friendly and speeds up commissioning and servicing.

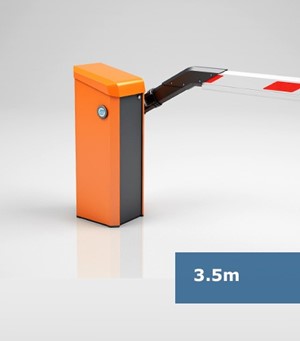

Barrier width of up to 3.5 m
Access is suitable for controlling entrances and lanes with a maximum lane width of 3.5 m.

Adjustable closing times
The opening time is fixed at 2.2 s. The closing time can be set to 2.2, 2.8 or 3.5 seconds.

Approved for use with movement of persons
Thanks to its low impact forces and safety settings, when the legally required safety equipment has been installed, Access is approved for use wherever the movement of persons cannot be ruled out for structural reasons.

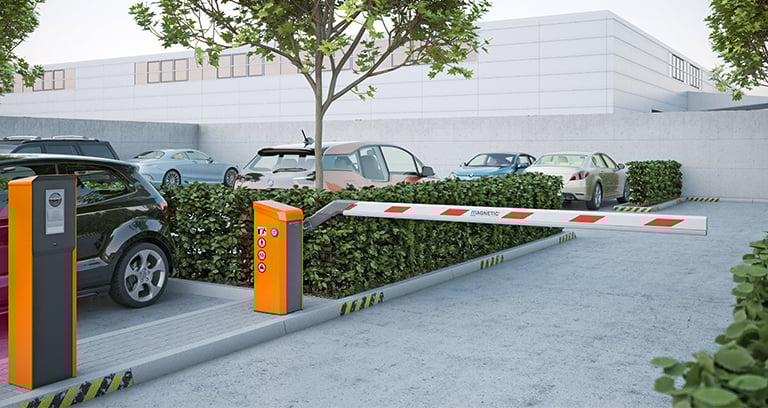

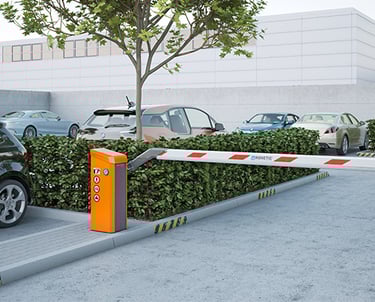

Magnetic ACCESS-L

For economical access control
With its barrier width of up to 5.0 m and its high level of basic functionality, the Access-L is the cost-optimized solution for controlling access to car parks, company grounds, residential buildings and similar areas. The control system of the Access-L offers numerous inputs and outputs with dedicated programmed functions, a 2-channel detector module, and a closing time that can be selected from three levels. The well thought-out equipment includes all the relevant components and enables uncomplicated commissioning and reliable operation.

Barrier width of up to 5.0 m

Adjustable closing times

The opening time is fixed at 4 s. The closing time can be set to 4, 6 or 8 seconds.

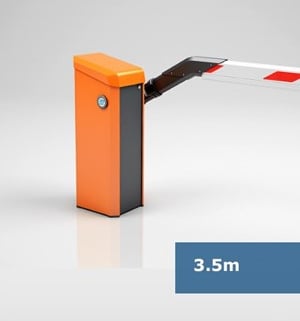

Magnetic ACCESS Pro

For economical access control
With its barrier width of up to 3.5 m and its comprehensive range of functions, the Access Pro is the perfect solution for controlling access to car parks, company grounds, residential buildings and similar areas. Unlike the basis version, the control system of the Access Pro offers a wide range of functions and supplementary expansion potentials through the use of plug-in modules. There are five slots for, e.g. an Ethernet interface, a radio module or a counting module for determining the number of parking spaces still available. All inputs and outputs can be individually configured by the user. Users can also choose from numerous input and output functions. The opening and closing times can each be selected from three levels independently of one another.

The Access Pro is suitable for controlling entrances and lanes with a maximum lane width of 3.5 m.

The opening and closing times can each be adjusted to 1.3, 1.8, or 2.5 seconds independently of one another.

Magnetic Access XL2

Access control barrier for wide lanes

For particularly wide lanes
With its barrier width of up to 8.5 m and the optional security grating or security grating with climb-over prevention, the Access XL2 is the ideal solution for extra-wide or multi-lane entrances to freight forwarders, company grounds and port facilities. The control system of the Access XL2 offers a wide range of functions and numerous expansion potentials through the use of plug-in modules. There are five slots for, e.g. an Ethernet interface, a radio module or a counting module for determining the number of parking spaces still available. All inputs and outputs can be individually configured by the user. Users can choose from numerous input and output functions. The opening and closing times can each be selected from three levels independently of one another.

With maximum barrier widths of 8,5 m respectively, the Access XL2 are the ideal solution for wide entrances that have to be controlled with a single barrier.

The opening and closing times can each be adjusted to 6, 8, or 10 seconds independently of one another.
